Bearings, units and housings -- Super-precision bearings -- Angular contact ball bearings -- Angular contact ball bearings, super-precision -- SKF 7016 ACE/HCP4A

7016 ACE/HCP4A

Dimensions

d		80	mm
D		125	mm
B		22	mm
d₁		95.83	mm
d₂		93	mm
D₁		109.17	mm
r_1,2	min.	1.1	mm
r_3,4	min.	0.6	mm
a		35.1	mm

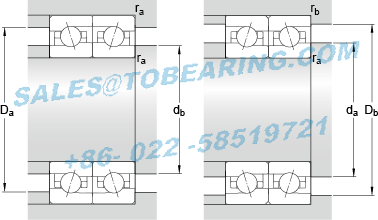

Abutment dimensions

d_a	min.	86	mm
d_b	min.	86	mm
D_a	max.	119	mm
D_b	max.	120.8	mm
r_a	max.	1	mm
r_b	max.	0.6	mm
d_n		98.5	mm

Calculation data

Basic dynamic load rating	C	32.5	kN
Basic static load rating	C₀	26.5	kN
Fatigue load limit	P_u	1.12	kN
Attainable speed for grease lubrication		15500	r/min
Attainable speed for oil-air lubrication		24000	r/min
Ball diameter	D_w	11.112	mm
Number of balls	z	25
Reference grease quantity	G_ref	12	cm³
Preload and stiffness (back-to-back, face-to-face)
Preload class A	G_A	280	N
Static axial stiffness, preload class A		198	N/µm
Preload class B	G_B	850	N
Static axial stiffness, preload class B		298	N/µm
Preload class C	G_C	1700	N
Static axial stiffness, preload class C		391	N/µm
Calculation factors
Calculation factor	f	1.1
Calculation factor	f₁	0.99
Calculation factor	f_2A	1
Calculation factor	f_2B	1.03
Calculation factor	f_2C	1.06
Calculation factor	f_HC	1.01
Calculation factor	e	0.68
Calculation factor (single, tandem)	Y₂	0.87
Calculation factor (single, tandem)	Y₀	0.38
Calculation factor (single, tandem)	X₂	0.41
Calculation factor (back-to-back, face-to-face)	Y₁	0.92
Calculation factor (back-to-back, face-to-face)	Y₂	1.41
Calculation factor (back-to-back, face-to-face)	Y₀	0.76
Calculation factor (back-to-back, face-to-face)	X₂	0.67

Mass

Mass bearing

0.77

Model Number: 7016 ACE/HCP4A
Inner Diameter：80mm Outer Diameter：125mm Width：22mm
Reference speed:- Limiting speed:-
Type：Bearings, units and housings Super-precision bearings Angular contact ball bearings Angular contact ball bearings, super-precision
Details： Angular contact ball bearings, super-precision
Update date：2021-06-04
Application:medical treatment,car instrument,coal,lifting tackle,preservation equipment,boring bar boring bar,garden machinery,enzyme,medical equipment,safety testing,cleaning agent
Similar models:S7016 ACD/HCP4A 7016 CD/P4A S7016 CB/HCP4A 7016 ACB/HCP4AL 7016 ACE/HCP4AL1 7016 CE/HCP4AL1 7016 CE/P4A 7016 CD/P4AL 7016 ACD/P4AH1 S7016 CB/P4A
BEARING POWER International Trading Co.,Ltd. specialize in 7016ACE/HCP4A products，there is large inventory of SKF 7016 ACE/HCP4A Angular contact ball bearings, super-precision. We has been built up long-term cooperation with SKF company, could make a bulk order of the 7016 ACE/HCP4A Which SKF 7016ACE/HCP4A is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
