Bearings, units and housings -- Bearing housings -- Flanged housings, FNL series -- FNL series for bearings on an adapter sleeve -- SKF FNL 522 B

FNL 522 B

Appropriate products

Bearing (basic designation)			2222 K
Adapter sleeve			H 322
Locating ring			FRB 10/200
Contact seal			2 x TFL 522

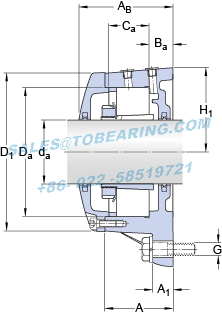

Dimensions

d_a		100	mm
C_a		63	mm
D_a		200	mm
A		98	mm
A₁		30	mm
A_B		137	mm
B_a		30	mm
D		244	mm
H		270	mm
H₁		135	mm
J		219	mm
L		270	mm
N		22	mm
Dowel pins
J₅		122	mm
J₆		78	mm
N₄	max.	8	mm

Breaking loads, housing

P₁	190	kN
P₂	200	kN
P₃	640	kN

Mass

Mass housing

23.5

Mounting information

Cover bolt, size		4 x M 10x30
Cover bolt, rec. tightening torque		47	N·m
Appropriate attachment bolt, size	G	20	mm
Appropriate attachment bolt, rec. tightening torque		385	N·m
Initial grease fill, 20%		420	g
Initial grease fill, 40%		650	g

Model Number: FNL 522 B
Inner Diameter：100mm Outer Diameter：-mm Width：-mm
Reference speed:- Limiting speed:-
Type：Bearings, units and housings Bearing housings Flanged housings, FNL series FNL series for bearings on an adapter sleeve
Details： FNL series for bearings on an adapter sleeve
Update date：2024-12-13
Application:security equipment,Low-voltage electrical equipment,plastic molding,Dental Drill etc,Dental Equipment,insect experimental analysis instrument,Oral Image,multi-knife lathe,forklift industry,food sterilization,plastic rolling
Similar models:52206 52211 SAFS 22522 T PBMF 152212 M1G1 SAF 22522 FSNL 522 TURU SSAFS 22522 x 3.7/8 TLC SAF 1522 x 4 TLC 52224 SAFS 22522 x 3.11/16 TLC
BEARING POWER International Trading Co.,Ltd. specialize in FNL522B products，there is large inventory of SKF FNL 522 B FNL series for bearings on an adapter sleeve. We has been built up long-term cooperation with SKF company, could make a bulk order of the FNL 522 B Which SKF FNL522B is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
