Bearings, units and housings -- Bearing units -- Y-bearing units (ball bearing units) -- Y-bearing flanged units -- Y-bearing square flanged units SKF FY 1.1/2 WF

FY 1.1/2 WF

Housing material

Cast iron

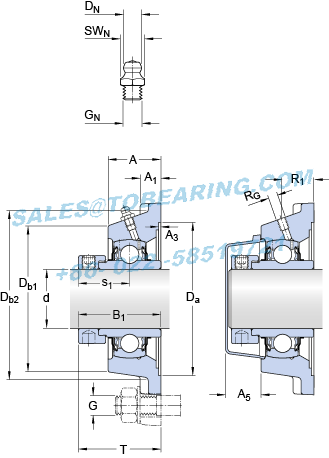

Dimensions

d		38.1	mm
A		38.5	mm
A₁		14	mm
A₃	H14	3.2	mm
A₅		26	mm
B₁		56.3	mm
D_a	H11	115.9	mm
D_b1		98	mm
D_b2		106	mm
J		101.5	mm
L		130	mm
N		14	mm
s₁		34.9	mm
T		58.9	mm
Threaded hole
R_G		1/4-28 UNF
R₁		25.5	mm
Grease fitting
D_N		6.5	mm
SW_N		7	mm
G_N		1/4-28 SAE-LT
Dowel pins
J₆		118	mm
J₇		34	mm
N₄		4	mm

Calculation data

Basic dynamic load rating	C	30.7	kN
Basic static load rating	C₀	19	kN
Fatigue load limit	P_u	0.8	kN
Limiting speed		4800	r/min

(with shaft tolerance h6)

Mass

Mass bearing unit

1.95

Mounting information

Thread grub screw	G₂	3/8-24 UNF
Hexagonal key size for grub screw	N	4.763	mm
Recommended tightening torque for grub screw		16.5	N·m
Recommended diameter for attachment bolts, mm	G	12	mm
Recommended diameter for attachment bolts, inch	G	0.5	in

Appertaining products

Housing			FY 508 M
Bearing			YEL 208-108-2F

Appropriate products

End cover

ECY 208

Model Number: FY 1.1/2 WF
Inner Diameter：38.1mm Outer Diameter：-mm Width：-mm
Reference speed:4800 r/min Limiting speed:-
Type：Bearings, units and housings Bearing units Y-bearing units (ball bearing units) Y-bearing flanged units
Details： Y-bearing flanged units Y-bearing square flanged units
Update date：2021-06-04
Application:Pneumatic Control Valves,Industrial,mathematical instruments,sewage pump,machine tool spindle,large agricultural machinery,hydraulic cylinder buffer,hydraulic cylinder,wire industry,security equipment,sawing machine
Similar models:7415 BGAM N 28/630 ECMB/HB1 71914 CB/HCP4AL BD-C 30/750 KMB-AOH 30/750 6314 NNU 49/600 B/SPW33X BD-22238 CCK/W33-H 3138 6008-2Z/VA208 FSAF 22613 x 2.1/4 305338 D
BEARING POWER International Trading Co.,Ltd. specialize in FY1.1/2WF products，there is large inventory of SKF FY 1.1/2 WF Y-bearing flanged units. We has been built up long-term cooperation with SKF company, could make a bulk order of the FY 1.1/2 WF Which SKF FY1.1/2WF is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
