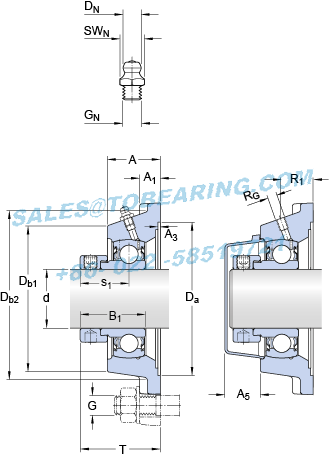

Housing material | Cast iron |
d | 42.863 | mm | |
A | 39 | mm | |
A1 | 14 | mm | |
A3 | H14 | 3.2 | mm |
A5 | 26.5 | mm | |
B1 | 43.7 | mm | |
Da | H11 | 119.1 | mm |
Db1 | 102 | mm | |
Db2 | 112 | mm | |
J | 105 | mm | |
L | 137 | mm | |
N | 16 | mm | |
s1 | 32.7 | mm | |
T | 56.7 | mm | |
Threaded hole | |||
RG | 1/4-28 UNF | ||
R1 | 24.5 | mm | |
Grease fitting | |||
DN | 6.5 | mm | |
SWN | 7 | mm | |
GN | 1/4-28 SAE-LT | ||
Dowel pins | |||
J6 | 123 | mm | |
J7 | 33.5 | mm | |
N4 | 4 | mm |
Basic dynamic load rating | C | 33.2 | kN | |
Basic static load rating | C0 | 21.6 | kN | |
Fatigue load limit | Pu | 0.915 | kN | |
Limiting speed | 4300 | r/min |
(with shaft tolerance h6)
Mass bearing unit | 2.05 | kg |
Thread grub screw | G2 | 3/8-24 UNF | ||
Hexagonal key size for grub screw | N | 4.763 | mm | |
Recommended tightening torque for grub screw | 16.5 | N·m | ||
Recommended diameter for attachment bolts, mm | G | 14 | mm | |
Recommended diameter for attachment bolts, inch | G | 0.5625 | in |
