KDMS 504-325/140

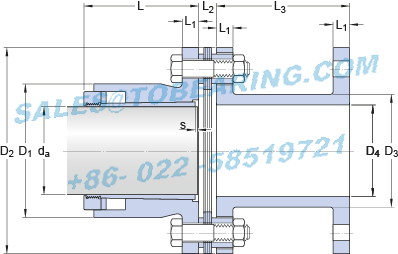

Dimensions

d_a		140	mm
D₁		225	mm
D₂		352.6	mm
D₃		222.3	mm
D₄		196.9	mm
L		309	mm
L₁		26.9	mm
L₂		28.4	mm
L₃		325	mm
s	min.	1.5	mm

Calculation data

Max. nominal application torque	35.1	kN·m
Max. speed	6600	r/min
Axial capacity	2.92	mm
Peak torque	81.35	kN·m
Stiffness	5.4	kN·m/mrad
Moment of inertia	1.85	kg·m²

Mass

Mass disc coupling

126

Model Number: KDMS 504-325/140
Inner Diameter：140mm Outer Diameter：352.6mm Width：-mm
Reference speed:- Limiting speed:-
Type：Coupling systems Flexible shaft couplings Flexible couplings with oil injection mounting, disc couplings
Details：
Update date：2021-06-04
Application:Surveying Surveying Instruments,gantry processing,steam Hydraulic control element,garbage disposal,storage and transportation equipment,hanging clamp,air shower etc,Optical Instruments,engineering machinery,car steering pin,Hydraulic Hose
Similar models:KD10-504 KDMS 504-325/140 KD21-504
