N 1009 KTN/SP

Dimensions

d		45	mm
D		75	mm
B		16	mm
d₁		56.3	mm
E		67.5	mm
r_1,2	min.	1	mm
r_3,4	min.	0.6	mm
s	max.	2	mm

Tapered bore, taper 1:12

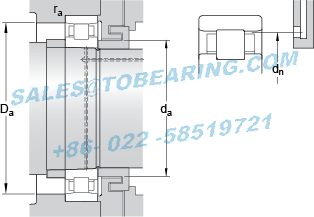

Abutment dimensions

d_a	min.	50	mm
D_a	min.	69	mm
D_a	max.	70	mm
r_a	max.	1	mm
d_n		66.4	mm

Calculation data

Basic dynamic load rating	C	29.2	kN
Basic static load rating	C₀	32.5	kN
Fatigue load limit	P_u	3.8	kN
Attainable speed for grease lubrication		14000	r/min
Attainable speed for oil-air lubrication		15000	r/min
Reference grease quantity	G_ref	2.9	cm³
Static radial stiffness (guideline value)		480	N/µm

Mass

Mass bearing

0.24

Model Number: N 1009 KTN/SP
Inner Diameter：45mm Outer Diameter：75mm Width：16mm
Reference speed:- Limiting speed:-
Type：Bearings, units and housings Super-precision bearings Cylindrical roller bearings Cylindrical roller bearings, single row, super-precision
Details： Cylindrical roller bearings, single row, super-precision
Update date：2025-12-09
Application:metal mold,journal lathe,EEG,Roller,Oral Image,Spectrum Products,relay,beverage production,Other machinery,forklift industry,electromagnet
Similar models:NJ 1009 ECP PCMF 081009.5 E N 1009 KTNHA/HC5SP N 1009 KPHA/HC5SP N 1009 KTN/HC5SP NU 1009 ECP/HC5C3 N 1009 KPHA/SP NU 1009 ECP N 1009 KTN/SP
BEARING POWER International Trading Co.,Ltd. specialize in N1009KTN/SP products，there is large inventory of SKF N 1009 KTN/SP Cylindrical roller bearings, single row, super-precision. We has been built up long-term cooperation with SKF company, could make a bulk order of the N 1009 KTN/SP Which SKF N1009KTN/SP is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
