Bearing (basic designation) |
23280 K
|
|||
Adapter sleeve | ||||
Locating ring |
2 x FRB 10/720
|

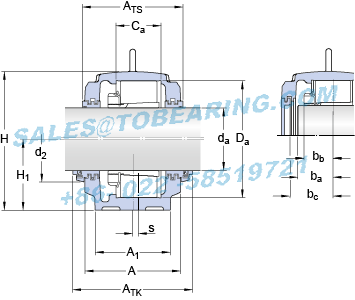

da | 380 | mm | |
Ca | 276 | mm | |
Da | 720 | mm | |
A | 460 | mm | |
A1 | 420 | mm | |
ATS | 470 | mm | |
H | 835 | mm | |
H1 | 420 | mm | |
H2 | 135 | mm | |
J | 1030 | mm | |
J1 | 260 | mm | |
L | 1220 | mm | |
N | 60 | mm | |
N1 | 48 | mm | |
s | 35 | mm | |
Shaft end | |||
ba | min. | 215 | mm |
ba | max. | 238 | mm |
bb | 210 | mm | |
bc | 243.5 | mm | |
Dowel pins | |||
J6 | 1120 | mm | |
N4 | max. | 35 | mm |
Labyrinth seal |
2 x TS 88/380
|
|||
End cover |
ETS 84
|
P0° | 8000 | kN | |
P55° | 10000 | kN | |
P90° | 4800 | kN | |
P120° | 3600 | kN | |
P150° | 3100 | kN | |
P180° | 4000 | kN |
Q120° | 5800 | kN | |
Q150° | 3350 | kN | |
Q180° | 2900 | kN |
Mass housing | 709 | kg |
Cap bolt, size | M 42x280 | |||
Cap bolt, rec. tightening torque | 850 | N·m | ||
Appropriate attachment bolt, size | G | 42 | mm | |
Appropriate attachment bolt, rec. tightening torque | 3640 | N·m | ||
Eye bolt, size |
2 x M 42
|
|||
Initial grease fill, 20% | 10.5 | kg | ||
Initial grease fill, 40% | 14.5 | kg |
Model No. | Inner Diameter | Outer Diameter | Width | Type |
594785 | 824.992 | - | - | Seals |
---|---|---|---|---|
6310-2RSH | 50 | 110 | 27 | Bearings, units and housings |
86738 | - | - | 63.5 | Seals |
BC2B 320117/HA4 | 530 | 780 | 285 | Bearings, units and housings |
BTM 140 BM/HCP4CDB | 140 | 210 | 63 | Bearings, units and housings |
FYR 3 11/16 | 93.6625 | - | - | Bearings, units and housings |
IR 32x37x20 | 32 | 37 | 20 | Bearings, units and housings |
NA 4910 | 50 | 72 | 22 | Bearings, units and housings |
OKBS 103 | 103 | - | - | |
PCZ 1014 E | 15.824 | 18.322 | 22.2 | Bearings, units and housings |
RLS 7-2Z | 22.225 | 50.8 | 14.288 | Bearings, units and housings |
WBB1-8710 | 15 | 21 | 3.5 | Bearings, units and housings |
