Housing material | Cast iron |

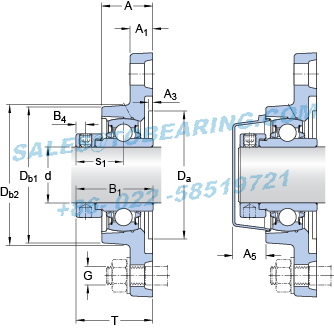

d | 34.925 | mm | |
A | 34.5 | mm | |
A1 | 13 | mm | |
A3 | H14 | 3.2 | mm |
A5 | 22 | mm | |
B1 | 51.1 | mm | |
B4 | 6.75 | mm | |
Da | H11 | 88.9 | mm |
Db1 | 88 | mm | |
Db2 | 96 | mm | |
J | 130 | mm | |
H | 156 | mm | |
L | 96 | mm | |
N | 14 | mm | |
s1 | 32.3 | mm | |
T | 53.3 | mm | |
Threaded hole | |||
RG | 1/4-28 UNF | ||
R1 | 22 | mm | |
Ra | 45 | ° | |
Dowel pins | |||
J6 | 106 | mm | |
J7 | 15 | mm | |
N4 | 2 | mm |
Basic dynamic load rating | C | 25.5 | kN | |
Basic static load rating | C0 | 15.3 | kN | |
Fatigue load limit | Pu | 0.655 | kN | |
Limiting speed | 1100 | r/min |
(with shaft tolerance h6)
Mass bearing unit | 1.25 | kg |
Thread grub screw | G2 | 3/8-24 UNF | ||
Hexagonal key size for grub screw | N | 4.763 | mm | |
Recommended tightening torque for grub screw | 16.5 | N·m | ||
Recommended diameter for attachment bolts, mm | G | 12 | mm | |
Recommended diameter for attachment bolts, inch | G | 0.5 | in |
Housing |
FYTB 507 M/VZ033
|
|||
Bearing |
End cover |
