Bearings, units and housings -- Bearing units -- Y-bearing units (ball bearing units) -- Y-bearing flanged units -- Y-bearing square flanged units SKF FYWK 1.15/16 LTHR

FYWK 1.15/16 LTHR

Housing material

Composite for food and beverage

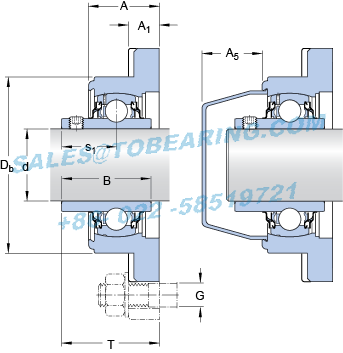

Dimensions

d	49.213	mm
A	43	mm
A₁	21	mm
A₅	42.7	mm
B	51.6	mm
D_b	114	mm
J	111	mm
L	143	mm
N	17	mm
s₁	32.6	mm
T	57.6	mm

Calculation data

Basic dynamic load rating	C	29.6	kN
Basic static load rating	C₀	23.2	kN
Fatigue load limit	P_u	0.98	kN
Limiting speed		2200	r/min

(with shaft tolerance h6)

Mass

Mass bearing unit

1.3

Mounting information

Thread grub screw	G₂	3/8-24 UNF
Hexagonal key size for grub screw	N	4.763	mm
Recommended tightening torque for grub screw		16.5	N·m
Recommended diameter for attachment bolts, mm	G	16	mm
Recommended diameter for attachment bolts, inch	G	0.625	in

Appertaining products

Housing			FYWK 510 L
Bearing			YAR 210-115-2RFGR/HV

Appropriate products

End cover

ECL 210
