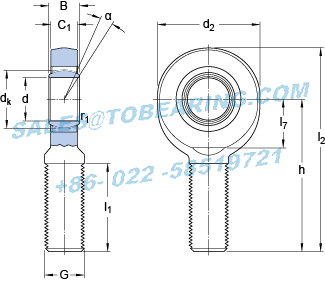

d | 20 | mm | |
d2 | max. | 54 | mm |
B | 16 | mm | |
G | M 20x1.5 | ||
C1 | max. | 13.5 | mm |
h | 78 | mm | |
a | 9 | ° | |
dk | 29 | mm | |
l1 | min. | 43 | mm |
l2 | max. | 107 | mm |
l7 | min. | 24 | mm |
r1 | min. | 0.3 | mm |
Basic dynamic load rating | C | 31.5 | kN | |
Basic static load rating | C0 | 42.5 | kN | |
Specific dynamic load factor | K | 100 | N/mm² | |
Material constant | KM | 1400 |
Mass rod end | 0.32 | kg |
