Bearings, units and housings -- Plain bearings -- Spherical plain bearings and rod ends -- Rod ends with a male thread -- SKF SAL 40 ES-2RS

SAL 40 ES-2RS

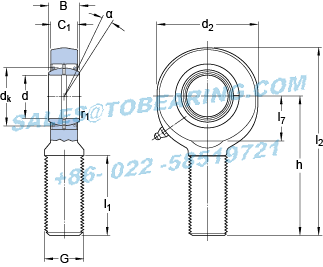

Dimensions

d		40	mm
d₂	max.	94	mm
B		28	mm
G		M 42x3
C₁	max.	24	mm
h		145	mm
a		6	°
d_k		53	mm
l₁	min.	76	mm
l₂	max.	194	mm
l₇	min.	46	mm
r₁	min.	0.6	mm

Calculation data

Basic dynamic load rating	C	100	kN
Basic static load rating	C₀	140	kN
Specific dynamic load factor	K	100	N/mm²
Material constant	K_M	330

Mass

Mass rod end

1.9

Model Number: SAL 40 ES-2RS
Inner Diameter：40mm Outer Diameter：-mm Width：28mm
Reference speed:- Limiting speed:-
Type：Bearings, units and housings Plain bearings Spherical plain bearings and rod ends Rod ends with a male thread
Details： Rod ends with a male thread
Update date：2024-12-13
Application:Cylinder Type,Antenna Potentials,lifting tackle,Low-voltage electrical equipment,electromyography machine,plant determination,other CNC,Roller,teaching equipment,equipment and,textile machinery
Similar models:PBM 220240250 M1G1 SIA 40 ES-2RS C 4026 K30 SAW 23540 x 7.1/4 T NNCF 4940 CV PCZ 3240 E PWM 505840 AN 40 GEP 400 FS BT4B 334056 B/HA1
BEARING POWER International Trading Co.,Ltd. specialize in SAL40ES-2RS products，there is large inventory of SKF SAL 40 ES-2RS Rod ends with a male thread. We has been built up long-term cooperation with SKF company, could make a bulk order of the SAL 40 ES-2RS Which SKF SAL40ES-2RS is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
