Bearings, units and housings -- Ball bearings -- Angular contact ball bearings -- Single row angular contact ball bearings -- Angular contact ball bearings, single row SKF 7206 BEGAP

7206 BEGAP

SKF Explorer

Dimensions

d		30	mm
D		62	mm
B		16	mm
d₁	≈	42.65	mm
d₂	≈	36.13	mm
D₁	≈	50.1	mm
a		27.3	mm
r_1,2	min.	1	mm
r_3,4	min.	0.6	mm

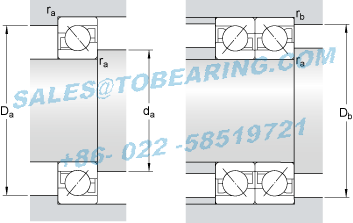

Abutment dimensions

d_a	min.	35.6	mm
D_a	max.	56.4	mm
D_b	max.	57.8	mm
r_a	max.	1	mm
r_b	max.	0.6	mm

Calculation data

Basic dynamic load rating	C	24	kN
Basic static load rating	C₀	15.6	kN
Fatigue load limit	P_u	0.655	kN
Reference speed		9500	r/min
Limiting speed		14000	r/min
Calculation factor	A	3.766
Calculation factor	k_r	0.095
Calculation factor	e	1.14
Single bearing or bearing pair arranged in tandem
Calculation factor	X	0.35
Calculation factor	Y₀	0.26
Calculation factor	Y₂	0.57
Bearing pair arranged back-to-back or face-to-face
Calculation factor	X	0.57
Calculation factor	Y₀	0.52
Calculation factor	Y₁	0.55
Calculation factor	Y₂	0.93

Mass

Mass bearing

0.2

Model Number: 7206 BEGAP
Inner Diameter：30mm Outer Diameter：62mm Width：16mm
Reference speed:14000 r/min Limiting speed:9500 r/min
Type：Bearings, units and housings Ball bearings Angular contact ball bearings Single row angular contact ball bearings
Details： Single row angular contact ball bearings Angular contact ball bearings, single row
Update date：2024-12-13
Application:Cylinder Micro,hydraulic connector,SPA equipment,electric hydraulic lifting platform,tapered grinder,industrial fans,equipment,labor insurance,test strip,test laboratory equipment and accessories,centrifugal pump
