Bearings, units and housings -- Bearing housings -- Split pillow blocks, SAF and SAW series (inch dimensions) -- SAF and SAW pillow blocks with bearings with a cylindrical bore -- SKF SSAFS 22224 T

SSAFS 22224 T

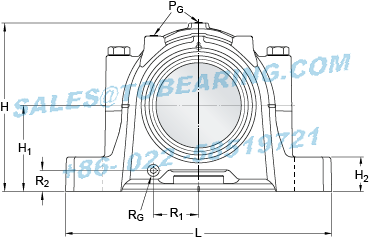

Dimensions

d_a	120	mm
d_b	134.938	mm
d_c	115.888	mm
D_a	215.001	mm
C_a	67.793	mm
A₁	120.65	mm
A₂	254	mm
S	4.763	mm
b_a	53.181	mm
H	257.175	mm
H₁	133.35	mm
H₂	53.975	mm
L	419.1	mm
Threaded holes
R₁	79.375	mm
R₂	30.163	mm
R_G	1/2 NPT
P_G	1/4 NPT
Oil level
h	46.831	mm

Included products

Housing			SAFS 224
Bearing			22224 E
Check availability of other clearance classes (e.g. C3)
Lock nut			AN 24
Lock washer			W 24
Stabilizing ring			SR-24-20
Taconite seal (d_b shaft position)			TER 127
Taconite seal (d_c shaft position)			TER 119

Associated products

End plug (suffix Y)

EPR 15

Speed ratings

Max. speed for Taconite seal

575

r/min

Recommended safe loads

P_60°	185	kN
P_90°	111	kN
P_120°	72.5	kN
P_150°	66.7	kN
P_180°	81.4	kN
P_a	52.5	kN

Mass

Mass pillow block

61.2

Mounting information

Cap bolt	4 x 1-8 UNC
Cap bolt recommended tightening torque	799.9	N·m
Cap bolt, SAE grade	5
Eye bolt	3/8-16 UNC
Initial grease fill	765.45	g

Model Number: SSAFS 22224 T
Inner Diameter：120mm Outer Diameter：-mm Width：-mm
Reference speed:- Limiting speed:-
Type：Bearings, units and housings Bearing housings Split pillow blocks, SAF and SAW series (inch dimensions) SAF and SAW pillow blocks with bearings with a cylindrical bore
Details： SAF and SAW pillow blocks with bearings with a cylindrical bore
Update date：2024-12-13
Application:chuck industry,mathematical instruments,shaft milling machine,trolley,special broaching machine,tapping machine,pressure control valve,industrial equipment,vacuum filter,turret industry,hot and cold box
Similar models:SAF 22224 TLC SAF 22224 T SAFS 22224 22224 E SSAFS 22224 SAF 22224 SSAFS 22224 T BD-22224 EK-AHX 3124 BD-22224 EK-H 3124 SSAFS 22224 TLC
